INSTALLATION CABLES

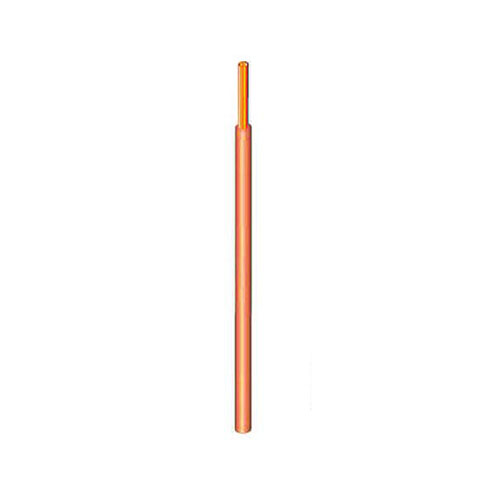

H07V-U (P)
Installation conductors with PVC insulation, type P (SRPS N.C3.200) Nominal voltage: 450/750V Test voltage: 2500V Construction: - Conductor: Wire, made of copper, class 1 - Insulation: PVC mass Place and area of use: For internal wiring of tools and devices, as well as for installation in ducts and pipes that can be above or below the plaster. Operating temperature range: -20°C to +70°C Temperature range during installation: 0°C to +50°C Minimum bending radius: 4×Ø cable
INSTALLATION CABLES

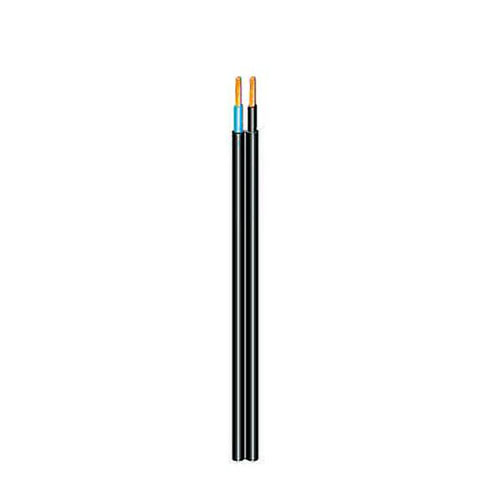

PP/R
Installation cables with insulation and PVC sheath, type PP/R (SRPS N.C3.230) Nominal voltage: 230/400V Test voltage: 2000V Construction: - Conductor: Wire, made of copper, class 1 - Insulation: PVC mass. Insulated conductors are placed parallel and spaced in one plane. - Infill: Unvulcanized rubber - Sheath: black PVC material Place and area of use: For electric power installations in dry rooms for permanent laying on or under plaster. Operating temperature range: -20°C to +70°C Temperature range during installation: 0°C to +50°C Minimum bending radius: 4×Ø cable
INSTALLATION CABLES

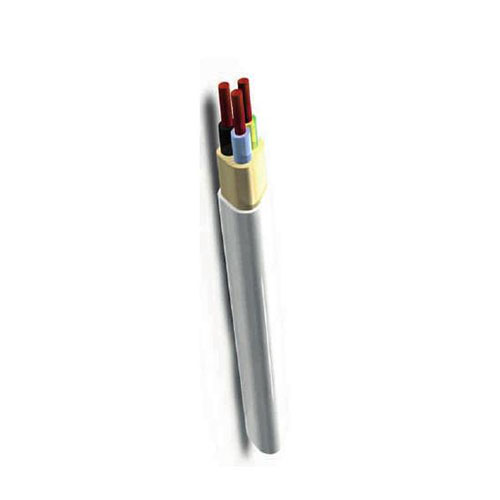

PP (NYM)
Installation cables with insulation and sheath made of PVC, type PP (SRPS N.C3.220) Nominal voltage: 300/500V Test voltage: 2000V Construction: - Conductor: Wire, made of copper, class 1 - Insulation: PVC mass. - Infill: Unvulcanized rubber - Sheath: gray PVC mass Place and area of use: For industrial and domestic fixed installation in dry and wet rooms for laying above and below plaster. Laying in the ground, in an open space or in concrete by pouring is not allowed. Operating temperature range: -20°C to +70°C Temperature range during installation: 0°C to +50°C Minimum bending radius: 4×Ø cable
