SELF-SUPPORTIVE CABLES

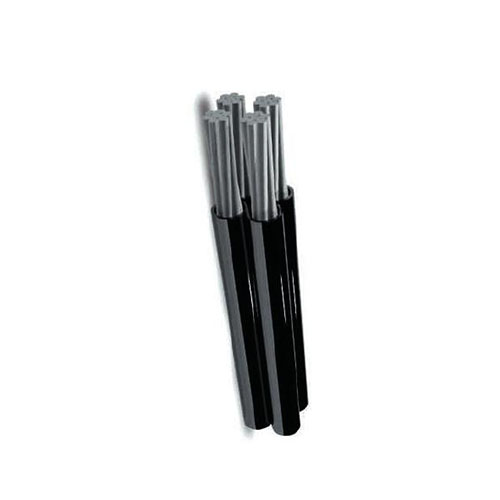

X00/0-A (FR-N1XD9-AR)

Self-supporting cable bundle (SKS) with cross-linked polyethylene insulation with supporting neutral conductor (SRPS N.C5.250)

Rated voltage: 0.6/1kV
Test voltage: 3kV

Construction:

- Phase conductor: Pressed round rope, made of aluminum, cross section 16, 35, 50, 70 mm².
- Neutral core: Pressed round rope, made of:
- aluminum-steel (Al/Fe) rope with a cross section of 50/80mm², or
- aluminum alloy AlMgSi cross section 70mm² or 54.6mm², or
- aluminum alloy AlMg1 (1% magnesium) cross section 71.5mm².
- Insulation: Black cross-linked polyethylene (XLPE). The neutral wire has a longitudinal protrusion, which can be easily seen or felt when touched by hand. Isolated vessels are connected to each other.

Place and area of ​​use:

- For distribution low-voltage overhead networks in populated areas.
- For powering remote objects of a permanent or temporary character.
- For above-ground household connections.

SELF-SUPPORTIVE CABLES

X00-A (FR-N1XD4-AR)

Self-supporting cable bundle (SKS) with cross-linked polyethylene insulation without supporting conductor (SRPS N.C5.250)

Rated voltage: 0.6/1kV
Test voltage: 3kV

Construction:

- Phase conductor: Pressed Al round rope with a cross section of 16, 25, 35, 50, 70 mm².
- Insulation: Black cross-linked polyethylene (XLPE). The neutral wire has a longitudinal protrusion, which can be easily seen or felt when touched by hand. Isolated vessels are connected to each other.

Place and area of ​​use:

- For distribution low-voltage overhead networks in populated areas.
- For powering remote objects of a permanent or temporary character.
- For above-ground household connections.
